Description

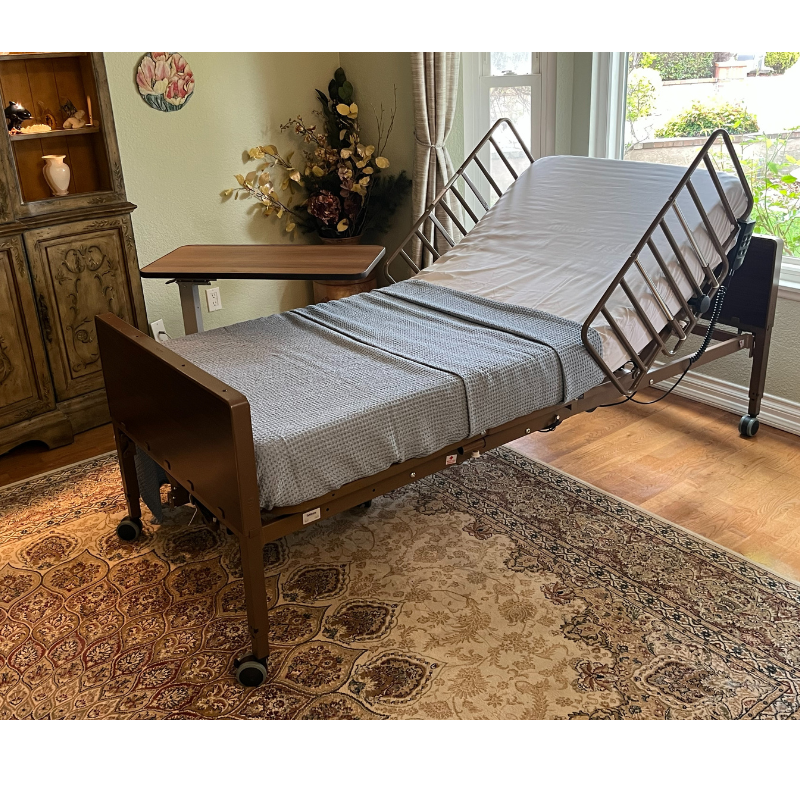

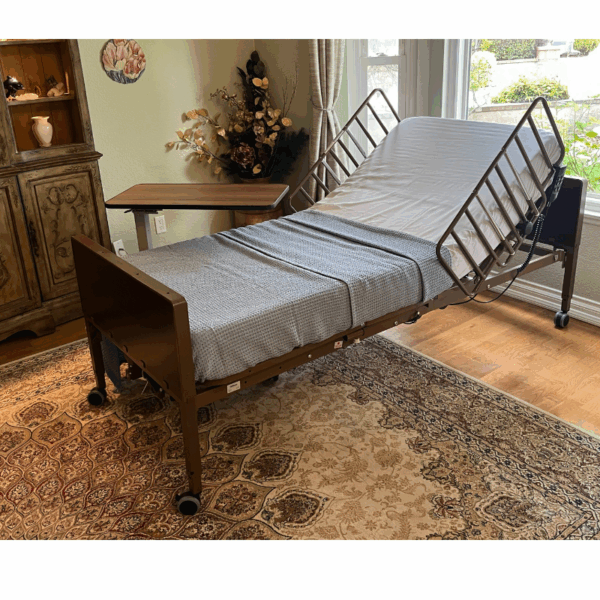

Hospital bed dimensions:  80 x 36 inches Twin XL.

Tuffcare T3030 model fully electric, head, foot, and entire bed operable with a 6 function remote.

Easily achieves the Trendelenburg position.

Xtension kit available to extend length of bed 4″ and a 84″ mattress.

Comes equipped with 3″ locking casters.

Weight capacity 450lbs.

Comes with emergency and crank to operate in case of power outage.

Comes with half or full rails.

Sheets include top, fitted, and pillow case.

Over bed table is height adjustable with rolling base

Overbed table is height adjustable and has locking swivel casters for easy maneuverability.

Overbed table specs: 25 lbs.  Height: 31-43.5 inches. Table top dimension: 30″ x 15″ x 3/4″.

FAQ

What models of hospital beds do you carry?

We carry semi-electric and full-electric hospital beds which elevate the head, foot, and entire bed. The only difference is the semi-electric has a crank to raise the bed and the full-electric has all functions with a push of a button.

Do the hospital beds have side rails?

Yes, we offer half-length rails which cover from the top of the bed to the middle of the bed as well as full-length rails which cover the full length of the bed.

What kind of mattress do you carry?

We offer a memory foam mattress with a waterproof cover for easy cleaning. The memory foam mattress is extremely comfortable as well as preventative towards bedsores or pressure sores.

Do you deliver and set-up the equipment?

Yes, all rentals of the hospital beds include free delivery and set-up to your home as well as instructions on how to use the equipment.

We offer $25.00 discount if you order hospital pkg. rental online.

Owners Manual

Catalog

• The transition box mounted on the foot section is key to interchangeability (Figure A)
• The transition box allows you to change the rotation of the high/low shaft
• Headboard is taller than footboard to better fit home decor (Figure B)
• The wood grain panels are break and scratch resistant
• Foot section weighs 50% less than conventional foot sections to make deliveries safe and easy
• Once installed, the high/low shaft will stay with the bed to eliminate loss or forgetting on future installations (Figure C)
• Labels and color-coded springs assure accurate installation of side rails for patient safety (Figure D)
• Unique motor is completely self-contained to reduce weight and noise
• The motor assembly can be installed and removed with patient in bed
• Bed, side rails and mattress safety-tested by SGS, a nationally recognized testing facility Satisfies all applicable FDA entrapment guidelines
• The motor is UL approved
• In the event of a power failure, a 9 volt battery, located in the hand control, can lower the head and foot sections nine times No crank needed
• New and improved hand pendant has large, easy-to-use controls (Figure E)
• Bed ships in two cartons
• Channel frame construction provides superior strength and reduced weight
• Zinc-coated spring deck
• Extension kit available (model #15030EXTKIT) extends length from 80″ to 84″
• Patent Pending
• Weight Capacity 450 lbs
